HYDRO BAN® Pre-Sloped Shower Pan

Product #

A component of the expanded HYDRO BAN line of products that allow for high quality rapid shower installations.

Color / Finish:

Product Overview

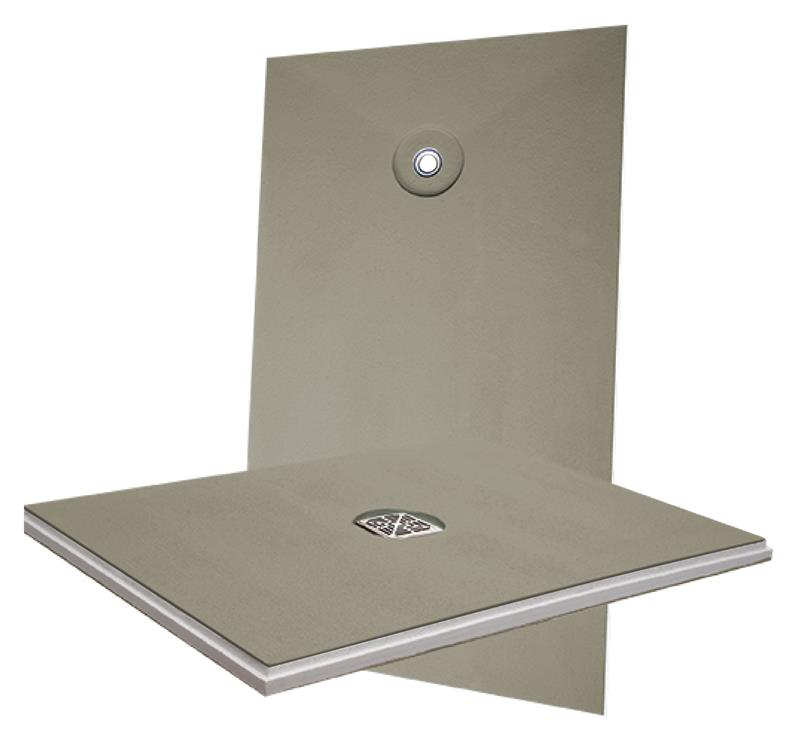

HYDRO BAN Pre-Sloped Shower Pan is a component of the expanded HYDRO BAN line of products that allow for high quality rapid shower installations. This tileable shower pan is ideal for either your next bathroom makeover or for a brand-new shower installation. Constructed of lightweight high-density expanded polystyrene, the HYDRO BAN Pre-Sloped Shower Pan comes with a factory installed drain/waste line connection, is 100% waterproof, and ready-to-tile.

Features & Benefits

  • Pre-sloped ready to tile pan eliminates need for traditional mud bed installations
  • Lightweight and durable. Easy to transport and handle during installation
  • Factory installed, code approved waterproofing meets ANSI A118.10 and ASTM D4068 requirements
  • Factory installed drain assembly
  • Can quickly and easily be modified to size on site
  • Code approved, Meets IAPMO-PS- 46
  • Component of LATICRETE® Lifetime Warranty*
  • Single source responsibility
  • Works in conjunction with LATICRETE tile and stone installation materials
  • * See DS 230.99 for complete warranty information.

Product Specifications

Details

Patent #(s)
Available Colors/Finishes
Part of System LATICRETE®
Country Availability Canada, United States
Substrates Cement Backer Board, Concrete, Exterior Glue Plywood, Oriented Strand Board (OSB), Oriented Strand Board (OSB)
Packaging Summary

Center Drains

48" x 48" (122 cm x 122 cm) ABS, PVC or BRS
36" x 60" (91 cm x 152 cm) ABS, PVC or BRS
36" x 48" (91 cm x 122 cm) ABS, PVC or BRS
48" x 60" (122 cm x 152 cm) ABS, PVC or BRS



Off Center Drain

38" x 66" (96 cm x 168 cm) ABS, PVC or BRS.

The HYDRO BAN Pre-Sloped Shower Pans are also available in custom sizes and shapes. All custom pans include a Sheet Membrane Drain Collar (for pans that use a traditional bonding flange).



Each pre-sloped shower pan is packaged with one HYDRO BAN Pre-Sloped Shower Pan, one HYDRO BAN Preformed Curb and one tube of HYDRO BAN Adhesive & Sealant.  All pans are available with either a PVC or ABS drain connection.  A Custom HYDRO BAN Pre-Sloped Shower Pan is also available with a brass waste line connection when needing a metal drain due to municipal building or plumbing codes.  The HYDRO BAN Drain Grates are sold separately in brushed, polished or oil rubbed bronze finishes. All custom pans include a Sheet Membrane Drain Collar (for pans that use a traditional bonding flange).



When ordering a HYDRO BAN Pre-Sloped Shower Pan check with local code official to determine whether a PVC, ABS or BRS (metal drain connection is required).
