Product #
A high performance peel and stick membrane offering anti-fracture protection and sound reduction.
产品概述
FRACTURE BAN is a high performance, pliable, lightweight peel and stick membrane designed for use under thin-set adhesive mortars for ceramic tile, stone and other hard surface installations. This reinforced high strength membrane performs both as an anti-fracture and an acoustical underlayment system that eliminates the transmission of stresses from the substrate while dampening the transmission of impact and air borne noise through the floor to the room below. The unique design of FRACTURE BAN allows for usage in both commercial and residential applications offering a quick turnaround from a single multi-use product.
The application of Primer Plus is the first step in the installation process of FRACTURE BAN 40 and FRACTURE BAN 90.
![](https://cdnmdm.laticrete.com/ProductAssets/ProductGallery/44fa04b13b2a4a15955a84431a49dead-784679669-1671811879.png)
![](https://cdnmdm.laticrete.com/ProductAssets/ProductGallery/11688f1a954049fdba44480fc6ec55be-1125474658-1671811879.png)
信息和指南
-
产品规格书
-
保证
-
营销信息
-
安全数据表
-
批准和认证
-
安装信息
特点和优势

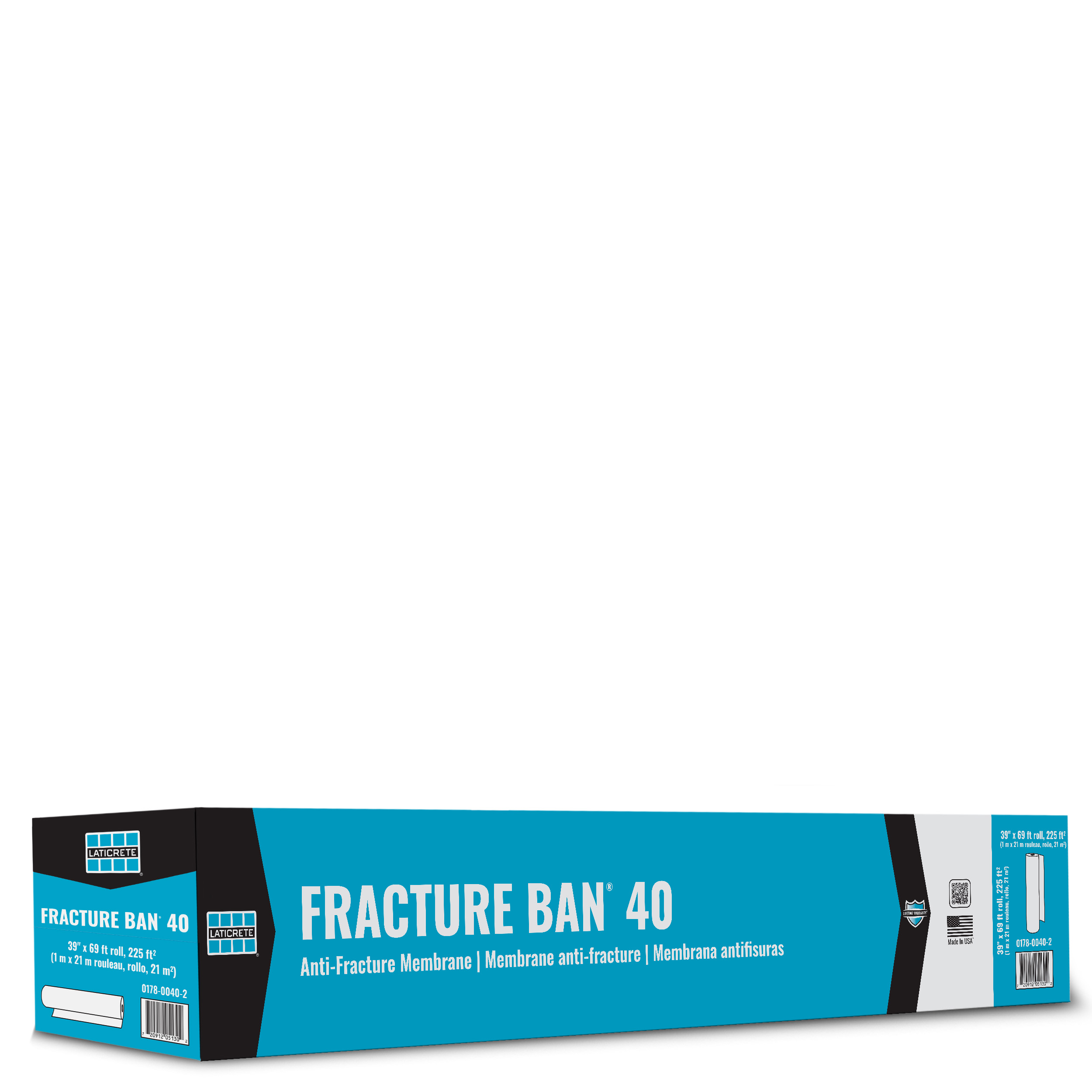

FRACTURE BAN®40
- Multi use peel & stick membrane providing anti-fracture/sound reduction for commercial and residential interior installations
- 40 mils (1 mm) thick durable polyester with adhesive construction to prevent in plane cracks up to 3/8" (9.5 mm)
- “Extra heavy” rating per ASTM C627 Robinson Floor Test to withstand vehicle and foot traffic
- ASTM E2179 IIC Rating 42 / Δ IIC 14 for reducing impact sound transmission
- White non-woven surface for easy chalk line identification

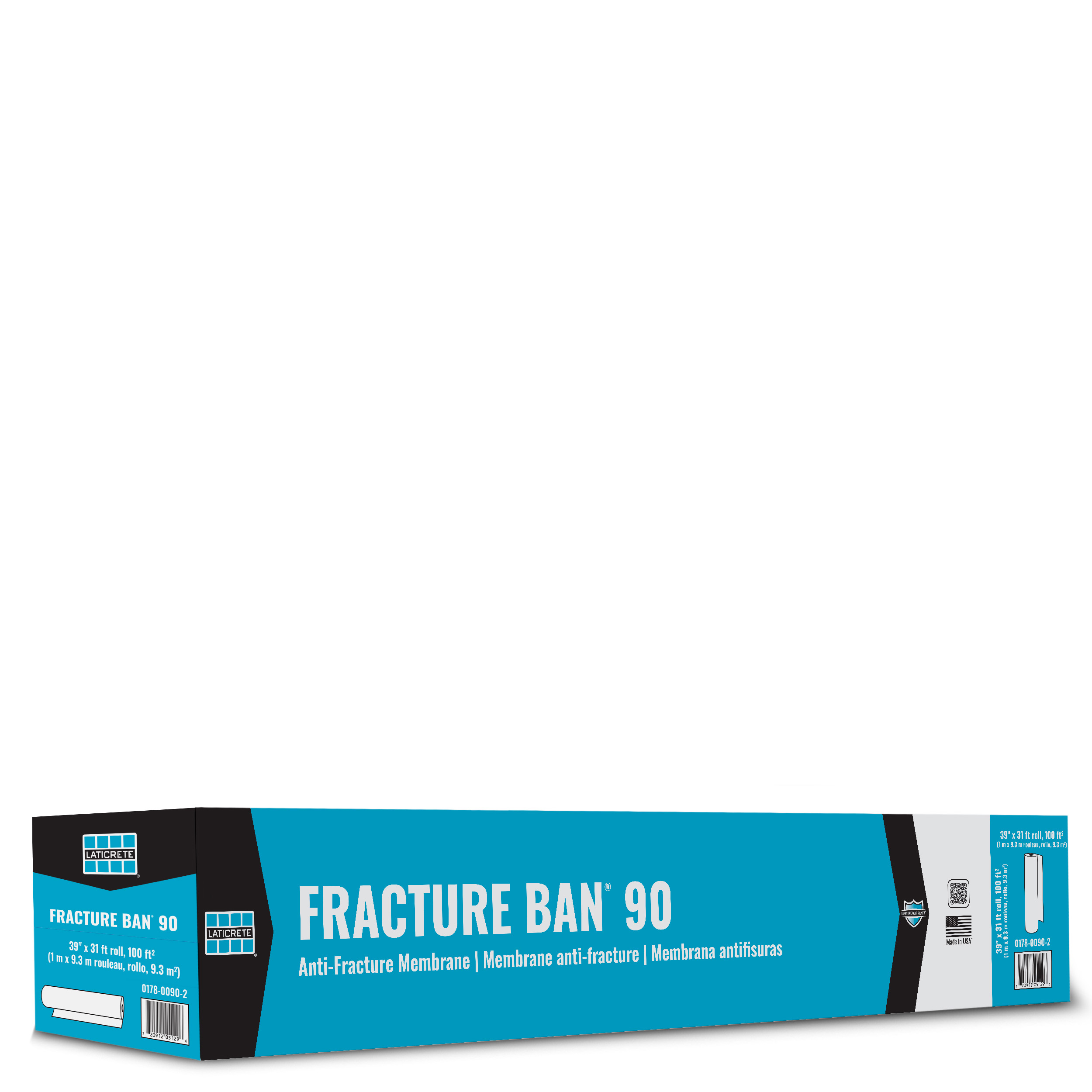

FRACTURE BAN 90
- Multi use peel & stick membrane providing anti-fracture/sound reduction for commercial and residential interior installations
- 90 mils (2.3 mm) thick durable polyester with adhesive construction to prevent in plane cracks up to 3/8" (9.5 mm)
- “Heavy” rating - ASTM C627 Robinson Floor Test to withstand vehicle and commercial traffic
- ASTM E2179 IIC Rating 45 / Δ IIC 17 for reducing impact sound transmission
- Grey non-woven surface for easy chalk line identification
产品说明书
详
专利号 | |
---|---|
可用颜色 | |
系统组分 | LATICRETE® |
在以下国家/地区有售 | Canada, United States |
Substrates | Backer Board, Cement Mortar Bed, Ceramic Tile, Concrete, Existing VAT, Exterior Glue Plywood, Gypsum Underlayments, Oriented Strand Board (OSB), Oriented Strand Board (OSB), Precast Floor Panels, Radiant Heated Floors, Self-Leveling and Patching Compounds, Stone, Terrazzo, VCT and Vinyl Floors |
包装尺寸 |
One roll of FRACTURE BAN 40 is 40 mils (1 mm) thick 39.25 in. x 69 ft ( 1 m x 21 m) or 225 ft² (21 m²). 24 rolls per pallet.
One roll of FRACTURE BAN 90 is 90 mils thick (2.3 mm) 39.25 in. x 30.6 ft ( 1 m x 9.33 m) or 100 ft² (9.3 m²). 24 rolls per pallet. |
